SES Data Logger Energy Device (DL-Energy) - Firmware

Flashing firmware to a SES Data Logger Energy Device (DL-Energy) involves replacing the device's original firmware with SES custom firmware. This can unlock additional features and customization options not available in the original firmware. This process, known as "flashing," is advanced and should be performed carefully to avoid damaging the device. Below is a step-by-step documentation to guide you through the process of flashing firmware to device.

Prerequisites​

  • SES Data Logger Energy Device (DL-Energy): Ensure your device is a SES Data Logger Energy Device (DL-Energy) model.
  • Smarter Energy Controls - Flasher Tool: Software to upload the firmware to the device.

Download tool from here.

Hardware Connection​

  1. Disconnect SES Data Logger Energy Device (DL-Energy) from Power: Ensure the device is not connected to any power source.

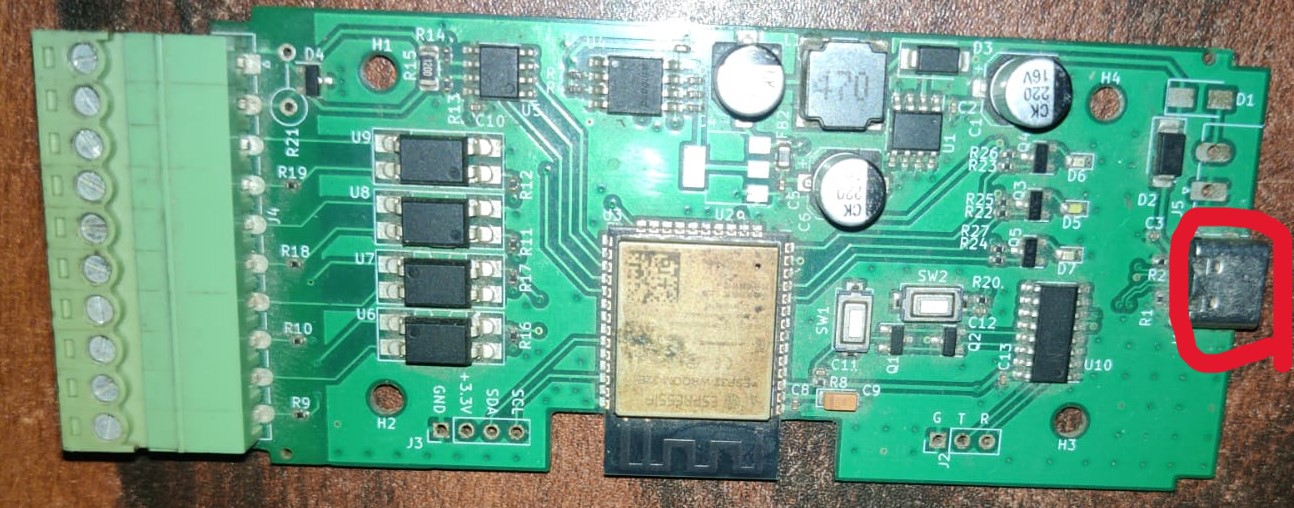

  2. Connect USB C Type to computer: Carefully connect computer USB to Device C-Type. And device will shown on Flash Tool. As it automatically enter Flash mode. ProgrammingHeaders

Flashing the firmware​

  1. Open the Flash Tool: Launch the Smarter Energy Controls - Flasher Tool you installed.
  2. Select the Device Type: Select device type Data Logger MET on flasher tool.
  3. Select the COM Port: Choose the COM port that your device is connected to. This should appear automatically in the tool.

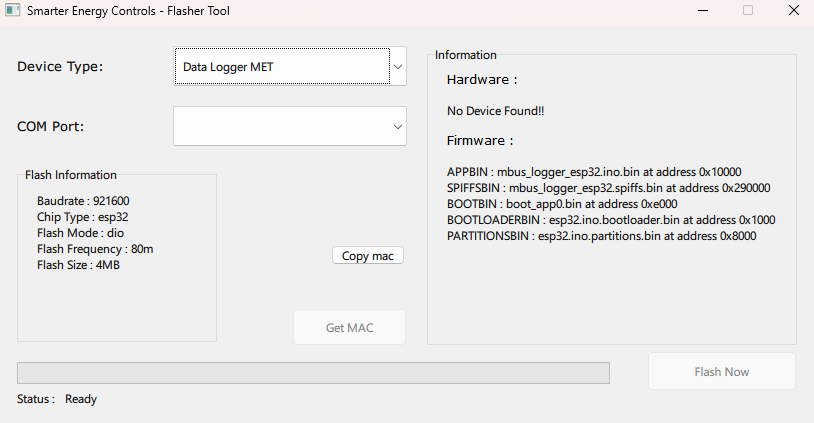

  4. Flash the Device: Initiate the flashing process. This typically involves clicking a "Flash Now" button in graphical tools. FLashTool

Reassemble and Test​

After the flashing process completes:

  • Disconnect the Adapter: Carefully disconnect your device from the adapter.
  • Reassemble the SES Data Logger Energy Device (DL-Energy): Put the case back together.
  • Power On: Connect the SES Data Logger Energy Device (DL-Energy) to power.
  • Test the Device: Verify that the new firmware is running and configure it as needed.
